Wallet Hydraulic Die Cutting Machine

The machine is suitable for continuously cutting large batch of regular nonmetal  materials by forming cutter.

1.High speed and low energy consumption.
2.Equipped with automatic self-lubricating system,can reducing wear and prolong its service life.
3.When you operate the wallet swing arm hydraulic die cutting machine,you should use your two hands. So it's more safe.
4.Use fly wheel inertia stored energy to save energy.
5. Wallet cutting machine of special specification can be customized.
Model                              GSB-8,GSB-10                 GSB-2C/10/12/14/16/18
Maximum cutting power(KN/TONS)     78.5KN(8TONS), 98KN(10TONS)  10ton to 18 tons
Cutting Table                      650×350mm                   800×400mm,900×430,450mm
Swaying arm width(mm)              350mm                        350mm
Max.Stroke(mm)                     75mm                         75mm
Motor Power(KW/HP)                 0.75KW/1HP                   0.75KW/1.5HP
Machine Dumensions(mm)             600×800×1500mm             900×900×1400mm
Packing Size(mm)                   1050×1050×1500mm           1350×1200×1550mm
Net Weight(No oil)(Kg)             580kg                        750-910kg
Gross Weight(Kg)                   650kg                        800-950kg

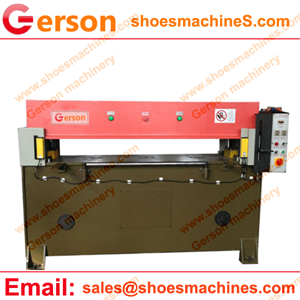

Acrylic Sheet Hydraulic Cutting Machine

The die cutting machine is mainly suitable for cutting various of plastic.Such as Plastic Sheet Acrylic,Transparent Plastic Sheets,Thin Flexible Plastic Sheets and so on.

1.The external motor and oil pump can ensure acrylic sheet cutting machine has a good ventilating and cooling conditions,so that ensure the operation safety and prolong sevice life of the die cutting machine.
2.Adopt double oil cylinder, four-column, precise double-crank connecting rod mechanism.
3.The operation of acrylic sheet hydraulic four-column die cutting machine is very easy,simple,prompt and easy-to-learn. The malfunction of cutting machine is low,cutting power is strong and the cutting speed is high.
4.Controlled by PLC ,can guarantee the cutting accurate,simple.
5.We will produce the acrylic  sheet die cutting machine according to your request.
Model                              GRB-25/30/40/50      GRB-60/80/100      GRB-120/150/200      GRB-300/400/500
Maximum cutting power(KN/TONS)     25/30/40/50Tons      60/80/100Tons      120/150/200Tons      300/400/500Tons
Cutting Table       (1250-2500)×(500-1500mm)  (1250-2500)×(500-1500mm)  (1250-2500)×(500-1500mm) (1600-2500)×(500-1500mm)
Max.Stroke(mm)                     250mm                250mm              250mm                250mm
Motor Power(KW/HP)                 2.2-4KW              5.5-7.5KW          11KW                 22KW
Machine Size(mm)                2200×2700×1300mm     2300×2800×1300mm  2500×3100×1500mm   2500×3100×1500mm
Weight(kg)                         1600kg-3300kg        4300kg-7600kg      9500kg-13000kg       15000kg-33000kg

Fabric Baby Toys Hydraulic Die Cutting Machine

It is fits for cutting single or multi layer leather,fabric etc.

1.Small motor power ensure low power consumption.
2.The switch is operated by both hands to guarantee the safety of operators.
3.Automatic speed variation device controls the movement of punch head,to realize flexible movement with accurate positioning and without impact
4.Because the toy die cutting machine equips with automatic lubricant system ,can reduce consumption ,wear and save labor force in maintenance.
5.Adopting differential oil way can make cutting more rapid and convenient.
Model                             GRM-25/30/40/50/80/100         GRD-25/30/40/50/80/100
Maximum cutting power(KN/TONS)    25/30/40/50/80/100 Tons        25/30/40/50/80/100 Tons
Cutting Table                    (1600-2500)×(500-1500mm)       (1600-2500)×(500-1500mm)
Traveling head size(mm)          (500mm-1500mm)×(500-1500mm)    (500mm-1500mm)×(500-1500mm)
Max.Stroke(mm)                    150mm                          150mm
Motor Power(KW/HP)                2.2-5.5kw                      2.2-5.5kw
Machine Dumensions(mm)            2200×620×2000mm or more      2200×620×2000mm or more
Weight(kg)                        2300kg                         2300kg

Magnetic rubber Clicker Press With swing Arm

Magnetic rubber Clicker Press With swing Arm is applicable to cutting of various nonmetal materials by cutting die.It could cutting such products as Soft Rubber Magnetic,A4 Size Soft Rubber Magneti,Rubber Sheet and so on.

1.Adopting time control allows for easy and convenient setting of cutter depth.
2.The high quality seamless steel tubes guarantee the flexible rotation and good reliability of upper beating board.
3.The magnetic rubber hydraulic swing beam cutting machine can make high-quality magnetic rubber sheet. The lower limit of stroke is controlled by a time-lapse circuit with high precision.
4.Using the inertial energy of flying wheel,to reduce consumption ,save cost and guarantee the operation stable.
5.The special specification can be customized.
Model                              GSB-8,GSB-10                 GSB-2C/10/12/14/16/18
Maximum cutting power(KN/TONS)     78.5KN(8TONS), 98KN(10TONS)  10ton to 18 tons
Cutting Table                      650×350mm                   800×400mm,900×430,450mm
Swaying arm width(mm)              350mm                        350mm
Max.Stroke(mm)                     75mm                         75mm
Motor Power(KW/HP)                 0.75KW/1HP                   0.75KW/1.5HP
Machine Dumensions(mm)             600×800×1500mm             900×900×1400mm
Packing Size(mm)                   1050×1050×1500mm           1350×1200×1550mm
Net Weight(No oil)(Kg)             580kg                        750-910kg
Gross Weight(Kg)                   650kg                        800-950kg

Vest Hydraulic Beam Die Cutting Machine

The hydraulic cutting machine is suitable for leather,fabric material industry supplies ,Such as Fluorescent Fabrics For Safety Vest,Reflective Vest,Fabric Waistcoat and etc.

1.Operation with double hand,it is more safe and reliable.
2.Structural changes during designing of this machine remove the need for the users to worry about possible oil leakage of the machine.
3.Cutting board micro-movement device can be allocated to evenly consume the cutting board and save cost.
4.With special setting mechanism, and equipped with die cutter and cutting depth setting, the travel adjustment is simple and accurate.
5.Microcomputer controlled, with simple, prompt and accurate operation.
Model                              GRB-25/30/40/50      GRB-60/80/100      GRB-120/150/200      GRB-300/400/500
Maximum cutting power(KN/TONS)     25/30/40/50Tons      60/80/100Tons      120/150/200Tons      300/400/500Tons
Cutting Table       (1250-2500)×(500-1500mm)  (1250-2500)×(500-1500mm)  (1250-2500)×(500-1500mm) (1600-2500)×(500-1500mm)
Max.Stroke(mm)                     250mm                250mm              250mm                250mm
Motor Power(KW/HP)                 2.2-4KW              5.5-7.5KW          11KW                 22KW
Machine Size(mm)                2200×2700×1300mm     2300×2800×1300mm  2500×3100×1500mm   2500×3100×1500mm
Weight(kg)                         1600kg-3300kg        4300kg-7600kg      9500kg-13000kg       15000kg-33000kg

Latex Insole Hydraulic Die Cutting Machine

Latex Insole Hydraulic Die Cutting Machine

1.The operation with hand wheel at the top of the die cutting machine can adjust the position of rocker. And we can adjust the cutting stroke by timer so that the optimal cutting position easily. Improving the working efficiency,and saving a lot of time.
2.It is very simple to learn how to operate the die cutting machine. You can set the knife mold of the die cutting machine quickly,and accurately.
3.Operation with your two hands,safe and reliable. You needn't worry about the problem of safe.
4.This machine saves raw material with lower cost and it is convenient for assembling and tearing down.
5.Machines of special specifications can according to the customers' demands.
Model                              GSB-8,GSB-10                 GSB-2C/10/12/14/16/18
Maximum cutting power(KN/TONS)     78.5KN(8TONS), 98KN(10TONS)  10ton to 18 tons
Cutting Table                      650×350mm                   800×400mm,900×430,450mm
Swaying arm width(mm)              350mm                        350mm
Max.Stroke(mm)                     75mm                         75mm
Motor Power(KW/HP)                 0.75KW/1HP                   0.75KW/1.5HP
Machine Dumensions(mm)             600×800×1500mm             900×900×1400mm
Packing Size(mm)                   1050×1050×1500mm           1350×1200×1550mm
Net Weight(No oil)(Kg)             580kg                        750-910kg
Gross Weight(Kg)                   650kg                        800-950kg

Denim Fabric Hydraulic Die Cutting Machine

The beam press is suitable for continuously cutting large batch of regular (or of the same specification)nonmetal  materials by forming cutter.

1.The hydraulic system supply the oil to all siding parts of the die cutting machine for lubrication,reducing wear and prolong the service life of the hydraulic die cutting machine.
2.If the external motor and oil pump can work under cooling conditions,the service life of die cutting machine can be prolonged,and the operation is more safe.
3.You don't need to worry about the possible of oil leakage of the die cutting machine. Because the structural of die cutting machine is designed,it can solve the problem.
4.You must operate the die cutting machine by your double hands,it's more safe and reliable.
5.Tell us the specification, we will custom it for you.
Model                              GRB-25/30/40/50      GRB-60/80/100      GRB-120/150/200      GRB-300/400/500
Maximum cutting power(KN/TONS)     25/30/40/50Tons      60/80/100Tons      120/150/200Tons      300/400/500Tons
Cutting Table       (1250-2500)×(500-1500mm)  (1250-2500)×(500-1500mm)  (1250-2500)×(500-1500mm) (1600-2500)×(500-1500mm)
Max.Stroke(mm)                     250mm                250mm              250mm                250mm
Motor Power(KW/HP)                 2.2-4KW              5.5-7.5KW          11KW                 22KW
Machine Size(mm)                2200×2700×1300mm     2300×2800×1300mm  2500×3100×1500mm   2500×3100×1500mm
Weight(kg)                         1600kg-3300kg        4300kg-7600kg      9500kg-13000kg       15000kg-33000kg

Wrist Hydraulic Cutting Press

The machine is applicable to cutting of various nonmetal materials by cutting die.It could produce such products as Wrist Band,Nylon Webbing  Wrist Band,Cotton Fabric Wrist Band and so on.

1.The cutting machine has a better effect,can reduce the consumption of the cutting board and  the loss of die cutter cutting plate machine. Enhance the effciency.
2.The traveling head cutting machine adopts permanent magnet sucker, it doesn't need set the die cutters. So the upper and lower die cutters can cut the materials freely ,and the operation is very convenient.
3.Operators can chose three modes of the die cutting machine,auto,semi-auto and manual operation.
4.The operators use the traveling head die cutting machine with double hands,it can ensure the operators' safe.
5.The special specifications of die cutting machine can be available on request.
Model                             GRM-25/30/40/50/80/100         GRD-25/30/40/50/80/100
Maximum cutting power(KN/TONS)    25/30/40/50/80/100 Tons        25/30/40/50/80/100 Tons
Cutting Table                    (1600-2500)×(500-1500mm)       (1600-2500)×(500-1500mm)
Traveling head size(mm)          (500mm-1500mm)×(500-1500mm)    (500mm-1500mm)×(500-1500mm)
Max.Stroke(mm)                    150mm                          150mm
Motor Power(KW/HP)                2.2-5.5kw                      2.2-5.5kw
Machine Dumensions(mm)            2200×620×2000mm or more      2200×620×2000mm or more
Weight(kg)                        2300kg                         2300kg

Textiles Sock Hydraulic Die Cutting machine

The hydraulic cutting machine is suitable for cloth material industry supplies .
1.The light and flexible arm of die cutting machine can be multi-faceted cutting materials.

2.Using the time control allows for simple and convenient setting of cutter depth.
3.The swing arm die cutting machine is workhorse for many die cutting applications,it is a very capable entrylevel machine.It's very easy to learn how to use it.
4.Through  inertial energy of wheel ,the energy consumption is lower and the operation stable.
5.Making the socks die cutting machine according to the customers' request.
Model                              GSB-8,GSB-10                 GSB-2C/10/12/14/16/18
Maximum cutting power(KN/TONS)     78.5KN(8TONS), 98KN(10TONS)  10ton to 18 tons
Cutting Table                      650×350mm                   800×400mm,900×430,450mm
Swaying arm width(mm)              350mm                        350mm
Max.Stroke(mm)                     75mm                         75mm
Motor Power(KW/HP)                 0.75KW/1HP                   0.75KW/1.5HP
Machine Dumensions(mm)             600×800×1500mm             900×900×1400mm
Packing Size(mm)                   1050×1050×1500mm           1350×1200×1550mm
Net Weight(No oil)(Kg)             580kg                        750-910kg
Gross Weight(Kg)                   650kg                        800-950kg

Leather Belt Hydraulic Die Cutting Machine

This die cutting machine is used for continuous and large-batch cutting of nonmetal materials. such products as leather belt,Famous Brand Belt,Pure Leather Belts and other products.

1.The four-column guiding ,double-crank balancing , four-column blocking fine-adjustment mechanism and special hydraulic control system control the main machine together. Ensure the operation speed and accuracy of die cutting of the die cutting machine.
2.Because the die cutting machine operated by operator with double hands, it is more safe and reliable.
3.The hydraulic cutting machine's speed is high,and the waste of raw is less,so the efficiency is higher.
4.The central oil supply automatic lubricating can lubricate all movable connecting parts ,then reduce the abrasion to the minimum extent.
5.The die cutting machine will complete the cutting  at the conveying belt,when it conveys the materials input the machine.
Model                              GRB-25/30/40/50      GRB-60/80/100      GRB-120/150/200      GRB-300/400/500
Maximum cutting power(KN/TONS)     25/30/40/50Tons      60/80/100Tons      120/150/200Tons      300/400/500Tons
Cutting Table       (1250-2500)×(500-1500mm)  (1250-2500)×(500-1500mm)  (1250-2500)×(500-1500mm) (1600-2500)×(500-1500mm)
Max.Stroke(mm)                     250mm                250mm              250mm                250mm
Motor Power(KW/HP)                 2.2-4KW              5.5-7.5KW          11KW                 22KW
Machine Size(mm)                2200×2700×1300mm     2300×2800×1300mm  2500×3100×1500mm   2500×3100×1500mm
Weight(kg)                         1600kg-3300kg        4300kg-7600kg      9500kg-13000kg       15000kg-33000kg

Sandwich Paper Hydraulic Cutting Press

The die cutting machine is mainly suitable for cutting various of paper.
1.The traveling head sandwich paper die cutting machine is convenient for assembling  and tearing down. It can save a lot of time,it's very simple to operate.

2.We can place the die cutter centrally,improve production efficiency with high accuracy and stability.
3.The special designed hydraulic system's characteristic include low noise and low consumption.
4.The operator should operate the die cutting machine by his double hand,because it's more safe and reliable.
5.The special specification of hydraulic cutting machine can be customized.
Model                             GRM-25/30/40/50/80/100         GRD-25/30/40/50/80/100
Maximum cutting power(KN/TONS)    25/30/40/50/80/100 Tons        25/30/40/50/80/100 Tons
Cutting Table                    (1600-2500)×(500-1500mm)       (1600-2500)×(500-1500mm)
Traveling head size(mm)          (500mm-1500mm)×(500-1500mm)    (500mm-1500mm)×(500-1500mm)
Max.Stroke(mm)                    150mm                          150mm
Motor Power(KW/HP)                2.2-5.5kw                      2.2-5.5kw
Machine Dumensions(mm)            2200×620×2000mm or more      2200×620×2000mm or more
Weight(kg)                        2300kg                         2300kg
